• With assistance, forklift or other safe working method, lift the remaining dolly assembly onto a raised platform so that the centre is clear of obstacles underneath and the leg castings are bearing the load of the centre section.

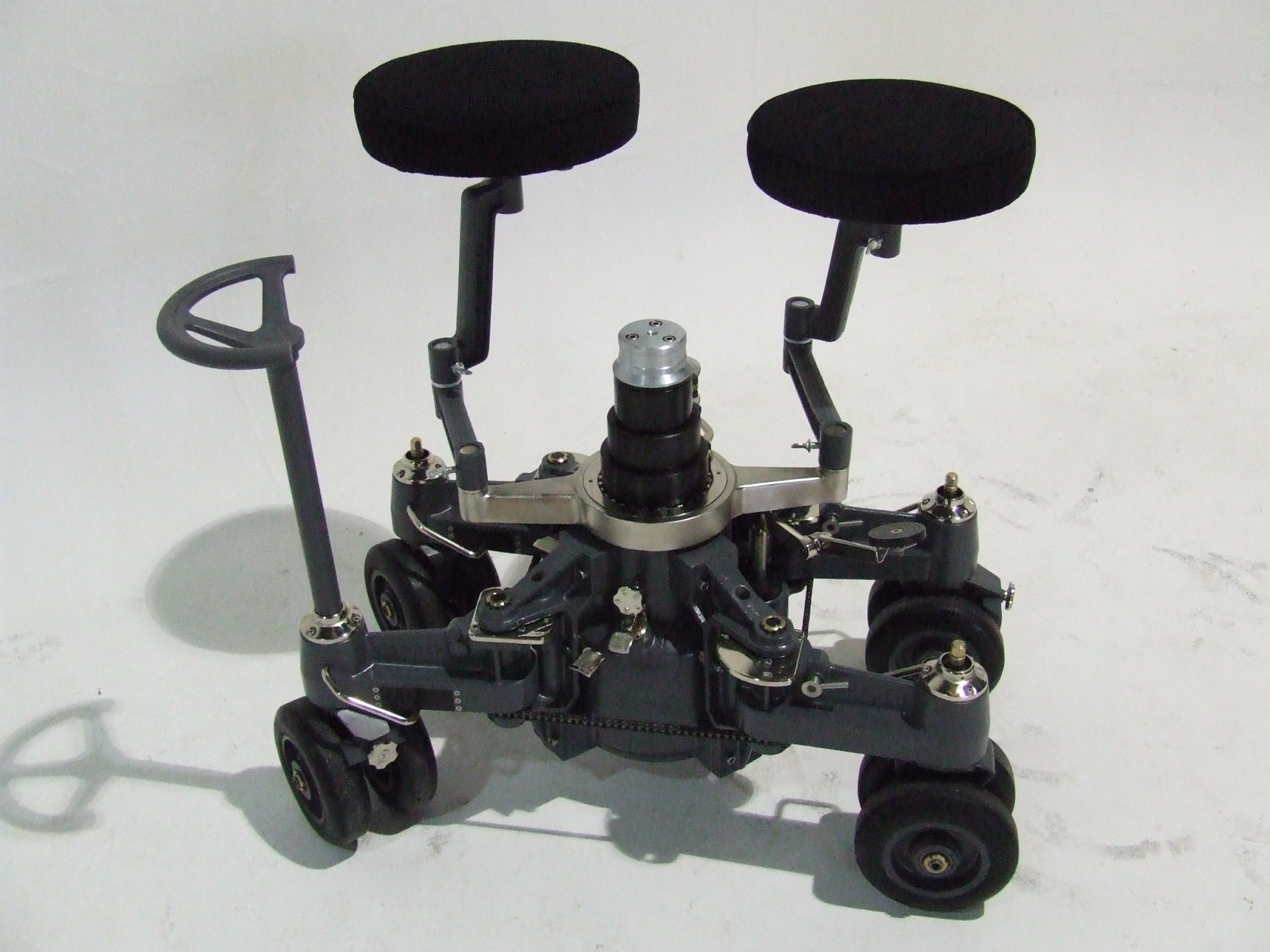

• Note. 1: It is best to do this with the legs in narrow mode as pictured. As my picture collection was not originally done with writing a manual in mind, I have the odd picture of processes missing.

​​​​​​​

• Note 2: as long as you do not remove/adjust any chains or undo the wheel casting lock nut the dolly will not need to be re-tracked (assuming that it was tracked to begin with).​​​​​​​

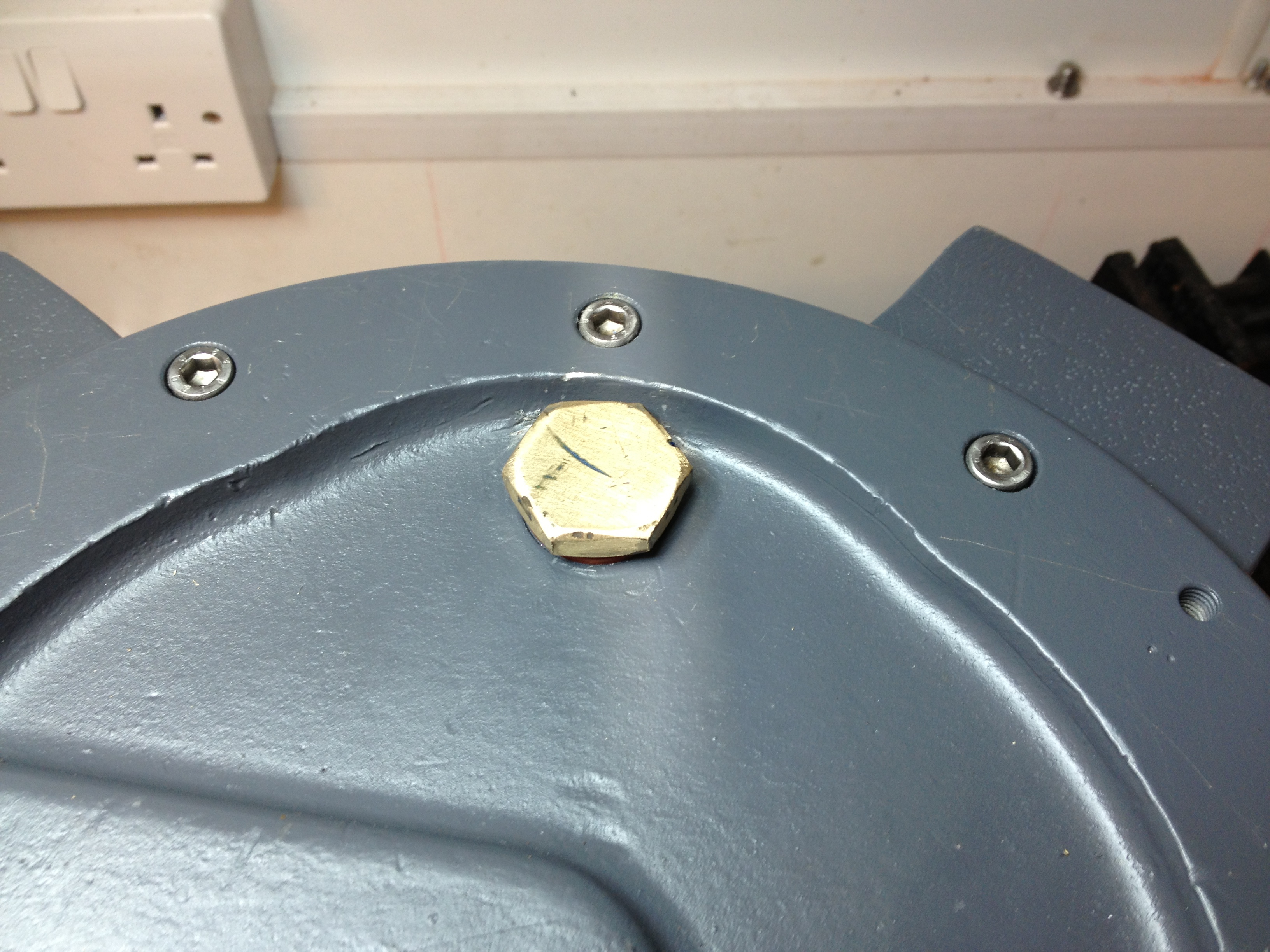

• Sump plug shown while the central casting is inverted during the rebuilding process.



• With a large bucket or oil pan, remove the brass sump plug under the dolly and allow the oil to drain. The unit contains several litres of oil.



• Dispose of oil safely according to local environmental guidance and regulation.



• Note you may have an amount of oil retained in the central column well. This can be removed with a brake-line vacuum at this point or you can wait until you remove the sump plate (expect it to gush out everywhere in the latter case).
